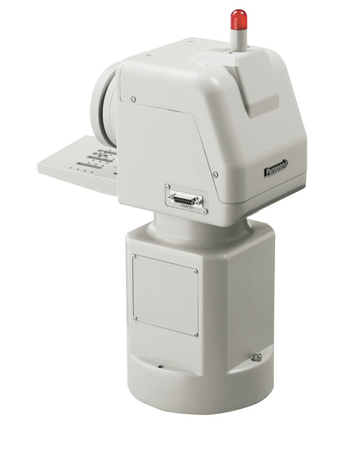

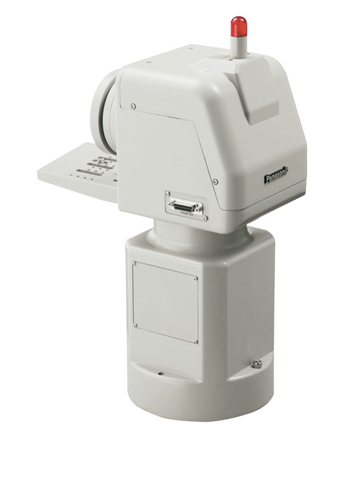

AW-PH405

Indoor Pan/Tilt Unit

KEY FEATURES

1. Pan: 300°, Tilt: 300°

2. High pan-tilt speed: 45° per second

3. Stop accuracy: +/- 3’ (0.05°)

4. Maximum load: 15kg

SPECIFICATION

• Noise level
  • Maximum control distance: 1,500m AW-RP400 + AW-IF400
• 1,000m AW-RP655/RP555
• 50 preset positions
• 10 tracking memories (max. time 300sec)
• Up to five camera systems controlled
• RS-232C controllable (via Panasonic controllers)
• Tally light available
• Support both broadcast & industrial motor lenses
• Power consumption: 120W
• Light weight 10kg
• Dimensions (W x H x D): 319mm x 416mm x 168mm
