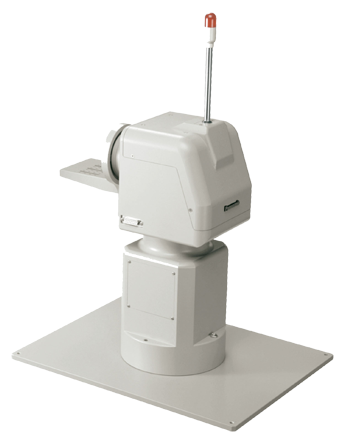

AW-PH400

Indoor Pan/Tilt Unit

KEY FEATURES

1. Pan: 400°, Tilt: 300°

2. Maximum pan/tilt speed: 90° per second

3. Stop accuracy: +/-30’ (0.008°)

4. Maximum load: 8kg

SPECIFICATION

• Noise level
  • Maximum control distance: 500m from AW-RP400
  • Maximum control distance: 1,000m (AW-IF400)
• 10 tracking memories (max time 600sec)
• RS-232C controllable (through AW-RP400)
• Tally Lights available
• Memory of last position
• Diagonal motion possible
• Teleprompter output
• Support both broadcast & industrial motor lenses
• Power consumption: 145W
• Light weight 10.2kg
• Dimensions (W x H x D):  315mm x 534mm x 188mm
