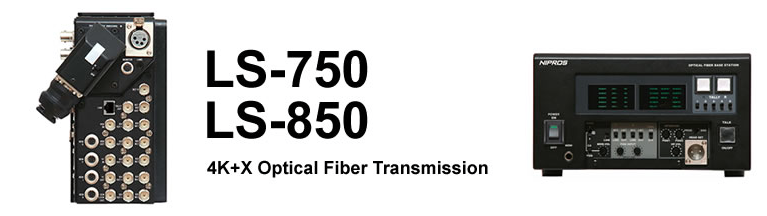

LS-750 Camera Adaptor LS-850 Base Station

5 x 3G-SDI downstream and 1 x 3G-SDI return transmission with LAN interface,
designed for advanced 4K or multiple HD/SD Camera System Integration!

1. Compact but powerful featured optical transmission system with SMPTE fi￢ber cable
2. 4K camera picture can be transmitted with additional 3G/HD/SD and control signals.
3. Up to Five 3G/HD/SD camera pictures can be transmitted with one cable.
4. LAN communication capability (up to 100Mbps)
5. Transferable signals with Single Optical Fiber Hybrid Cable are;

• 5 x 3G/HD/SD-SDI downstream video with up to16ch embedded audio
• 1 x 3G/HD/SD-SDI return video with 16ch embedded audio
• Prompter video (composite video)
• 2-Channel Analog Audio transmission
• Intercom PROD/ENG lines
• Tally function
• TC input / output
• Genlock function
• Camera remote control signal (Sony, Panasonic, Ikegami, LANC)
• Power supply for camera (Max. 50W)

6. Extendable max. distance between camera adaptor and base station is up to 2 km.
7. Signal Error detection function
8. AC/DC operation
