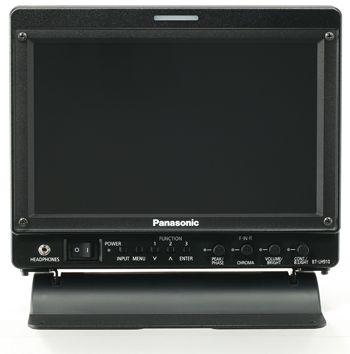

BT-LH910G

LCD MONITOR

KEY FEATURES

1. 9 type IP WXGA 1280 x 768 LCD

2. 3D assist field monitor

3. High contrast ratio 1,000:1

4. Multi input support, 3G-SDI, HD/SD-SDI, HDMI

SPECIFICATION

• 1,280 x 768 pixel WXGA, highest in class
• SD and HD auto input selection
• Multi format:
  • HD: 1080/24psF, 1080i, 720p
  • SD: 576i and 480i
• 2 x SD/HS-SDI with active thro, HDMI inputs
• 350 cd/m2 brightness and 300:1 contrast
• 3D assist functions; overlay HV mirror/shift
• Built-in RGB waveform monitor
• Functions include: Focus-in-red, SDI-CC, Tally, Audio. level meter & headphone jack, Vector scope, Camera VF I/F, Protection panel, Tilt stand
• 12DC or battery powered
• Light weight 1.7kg
